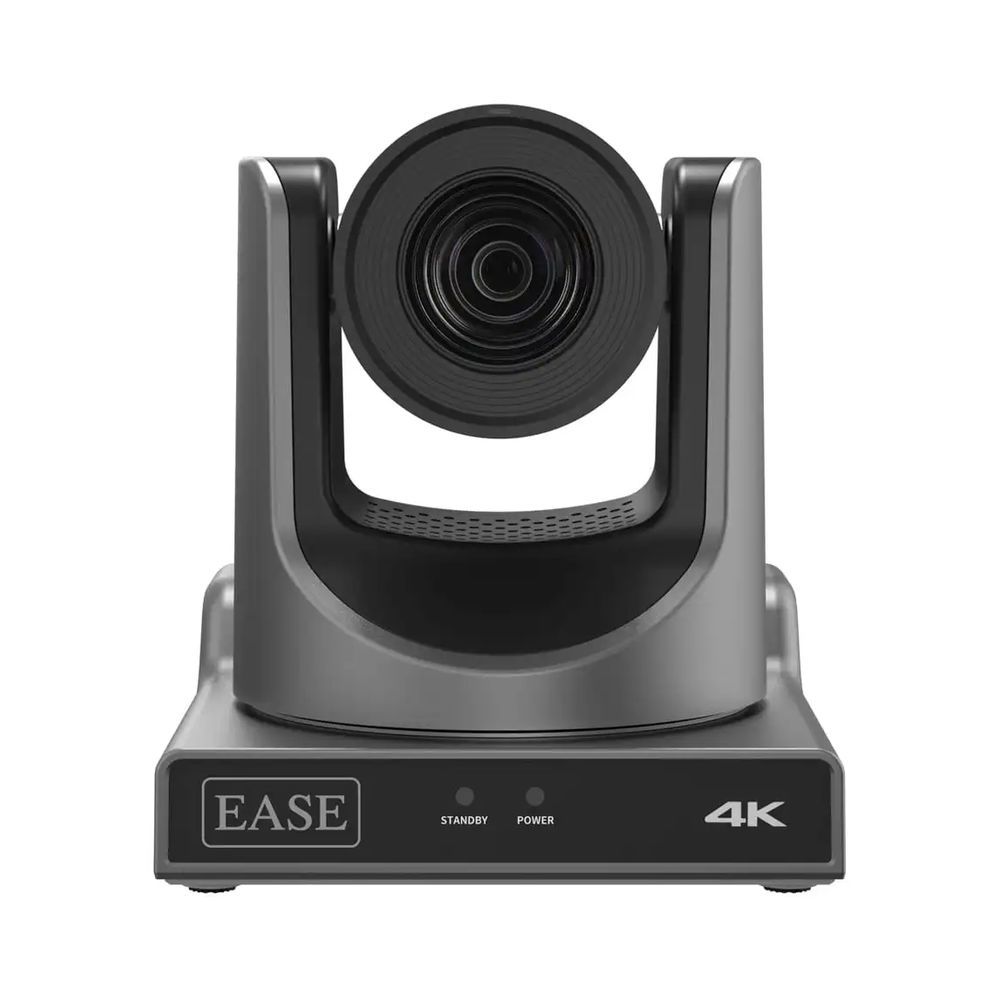

EASE PTZ 12X 4K30P Professional PTZ Camera

Camera:-

Signal System:
HDMI: 4K/30, 4K/29.97, 4K/25;
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 750p/50;
3G-SDI: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94,
1080i/50, 720p/60, 720p/59.94

Sensor: 1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels

Scanning Mode: Progressive

Focal length: 12x, f = 3.47mm ~41.65mm, F 1.84 ~ F3.72

Digital Zoom: 16x

Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)

Shutter:  1/30s ~ 1/10000s

White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR

Backlight Compensation:  Support

Digital Noise Reduction:  3D Digital Noise Reduction

SNR: ≥ 55dB

Horizontal FOV: 80.8° ~ 7.5°
Vertical FOV: 34.1° ~ 1.89°

Pan Angle: ±170°
Tilt Angle: -30° ~ +90°

Pan Speed: 1.7° ~ 100° /s
Tilt Speed: 1.7° ~ 69.9° /s

Image Flip: Support
Image Freeze: Support

Preset Position: 255
Preset Accuracy: 0.1°

General Specifications:-

Input Voltage: DC 12V/PoE+（802.3at）
Input Current: 1.5A (Max.)
Storage Temperature: -40 ~ 60° C
Operating Temperature: -10 ~ 40° C
Power Consumption: 13W (Max.)
Dimensions: 169mm x 142mm x 175mm
Net Weight: 1.6Kg

Network Features:-

First Stream Resolution: 1920×1080, 1280×720, 1024×576 etc.
Second Stream Resolution: 3840×2160, 1920×1080, 1280×720, 1024×576 etc.
Video Compression: H.264 / MJPEG / H.265
Video Stream: First Stream, Second Stream
Video Bit Rate:  First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps
Bit Rate Control: VBR, CBR
Frame Rate:  50Hz: 1fps~50fps, 60Hz:1fps~60fps
Audio Compression:  AAC, G711A
Audio Bit Rate: 96Kbps, 128Kbps
Protocols: NDI®|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP/ RTMPS, Onvif, DHCP, Multicast, GB/T 28181, etc.

Interfaces:-

USB Interface: 1 x USB2.0,Type-A
HD Output: 1x HDMI: Version 1.4b;  1x 3G-SDI: BNC , 800mVp-p,  75Ω, as per SMPTE 424M standard
Network Interface: 1x RJ45: 10M/100M/1000M adaptive Ethernet
Audio Interface:  1 x Line In: 3.5mm Jack;
1 x Line Out: 3.5mm Jack;
Control Interface: 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P;
1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m,
Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only
Power Interface: JEITA type (DC IN 12V)
