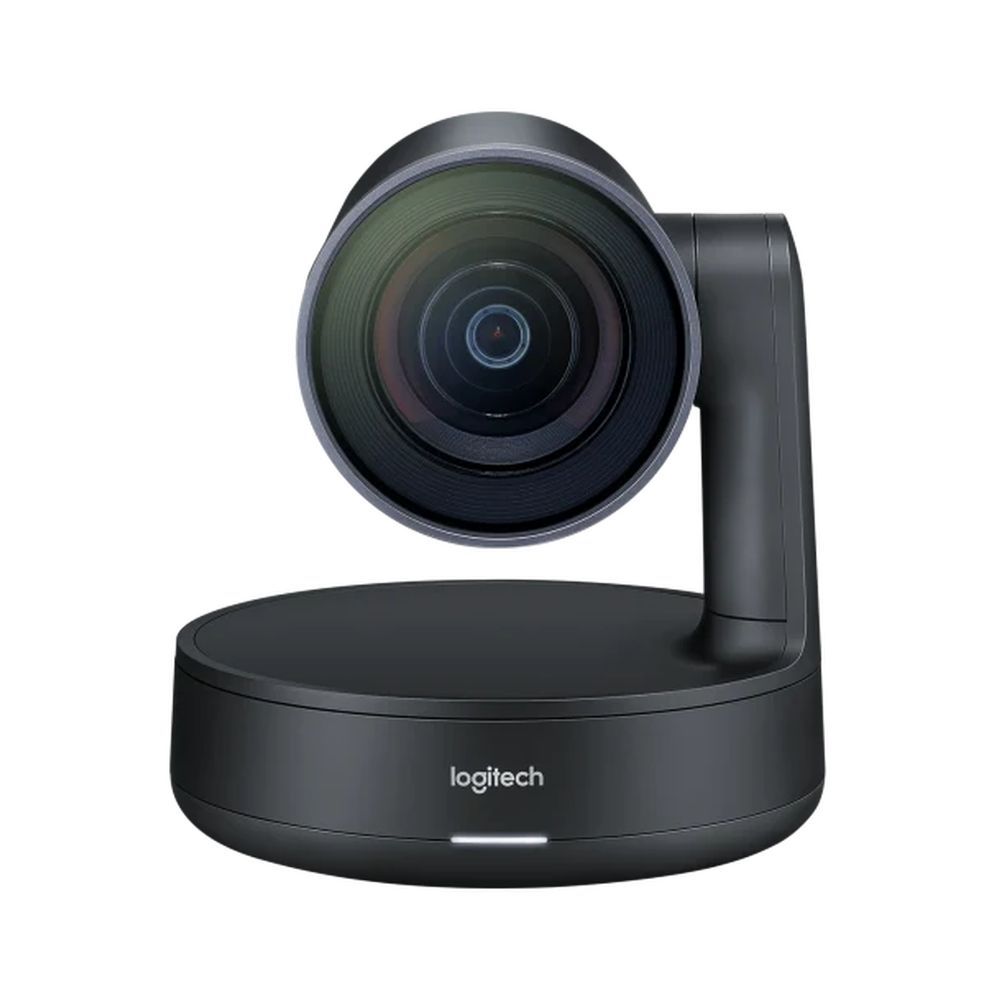

Product Type Webcam
Availability  Same Day Delivery
Model Rally Plus (960-001275)
Connectivity USB
Compatibility SYSTEM REQUIREMENTS
Operating Systems
Windows 7, 8.1 or Windows 10
macOS: 10.10 or higher
ChromeOS
Resolutions higher than 1080p
Windows 8.1 or higher or macOS 10.10 or higher
USB 3.0 port
Compatible software
Performance Rally Camera
Zoom: 15x HD zoom (5x optical + 3x digital)
Pan: 180° (±90°)
Tilt: 140° (+50° / -90°)
Field of View
Diagonal: 90°
Horizontal: 82°
Vertical: 52°
Rally Mic Pod
Rally (one Mic Pod): 16
Rally Plus (two Mic Pods): 16
Additional participants per Mic Pod: 6
Recommended participants for Rally with 7 Mic Pods: 46
Rally Speaker
High-performance 76 mm driver with rare-earth magnet
Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
Mini XLR cable connects to Rally Display Hub for both signal and power
Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
Sensitivity: 95+/-2 dB SPL at ½ meter
Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
Sampling rate: 48 kHz
Rally Table Hub
Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m
Hub 5 m cable included, supports customer-supplied cables up to 50 m
Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
12 Pin connector for Rally Mic Pod
HDMI Type A passthrough to Display Hub (x2)
USB Type C
USB Type A (reserved for future capability)
USB Type B (connects to meeting room computer)
RJ45 (reserved for future capability)
Power input
Rally Display Hub
HDMI Type A: (x2) (connects to displays)
USB C (connects to Rally Camera)
USB Type B (connects to meeting room computer)
RJ45: connects to Table Hub
Mini XLR: x2
Powers one or two Rally Speakers
Power input
Remote Control
RF remote control (line of sight not required)
CR2032 batteries (included)
Manufacturer Link Additional Information
Warranty Check
Color Black
